EC-145 Lee County 800 Size Scale Helicopter ARF (Almost Ready to Fly) from Roban
Power Type : Electric
Rotor Type : Collective Pitch
Body Material : Fiberglass
Overall Size (L x W x H) : 1960 x 355 x 510mm
Flying Weight : 8000g
Main Rotor Diameter : 1660mm
Main Rotor Blade Length : 750mm
Tail Rotor Diameter : 160mm
Tail Rotor Blade Length : 70mm
Tail Drive Type : Torque Tube
Cyclic Servos : 3x MKS DS1220 - MKS6005-002
Tail Servo : 1x MKS HBL980 - MKS-HBL980
Power System : 500Kv Brushless Motor
Electronic Speed Control : 160A High Voltage with EC5 Connector
Recommended Battery : 2x6S 22.2V 5000 mAh LiPo with EC5 Connector (in series for 12S)
Battery Compartment Size (L x W x H) : N/A
Required Radio : 8 Channel
Skill Level : Expert
Build Time : 4+ Hours
Recommended Environment : Outdoors
Features:
4 Blade rotorhead and scale carbon fiber rotor blades
2 blade and scale carbon fiber tail blades
Extremely detailed surface with molded panel lines and rivets
Complete 7 seat scale cockpit
Complete built In / partially pre-installed position lighting system (Controlled via AUX channel)
Special CCPM mechanics built in the top section like the full scale
Take off weight of 8kg (approximately double of a 700 3D helicopter)
1765mm long, 1/8 scale
Includes:

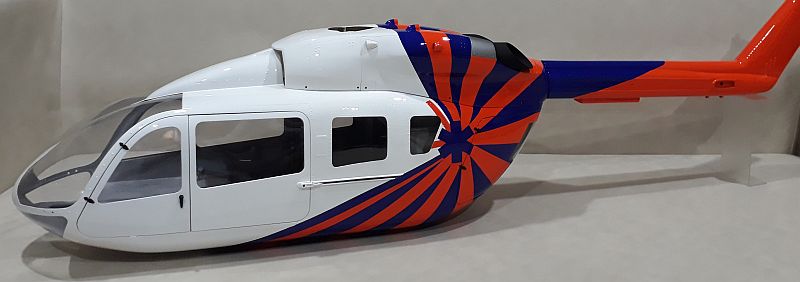

Roban EC-145 Lee County 800 Size size scale body
Full 800 size helicopter mechanics
4 Carbon fiber rotor blades
Complete 7 seat scale cockpit
Complete built in / partially pre-installed position lighting system
