H1

6CH RC Helicopter Flight Controller H1 Flybarless Gyro System For ALIGN T-REX SAB GAUI Scale Helicopter Not PIXHAWK FC



NOTE:  ①：If you use the full function, you need a 9-channel remote control or more advanced

              ②：6.4-8.4V   BEC power （CAN 'T  use 5V BEC）





If you are using Spektrum transmitter and receiver, please prepare  the SBUS adapter by yourself. Because the installation process is more complicated, it is not recommended to use Spektrum transmitter and rec



 Specification

100% Brand New

Suitable for HR3 / H3 Flybarless swashplate helicopter

Battery：3 / 4 / 6 S lipo battery

Receiver type：S.bus / PPM / SUMD HD 08

Operating system：Win 7 / 8 / 10 (32 or 64 bit system)。compatible XP （Not recommended XP ）

rated power：2W

Peak power ：4W

Voltage input range： 6.4-8.4V   BEC power （CAN 'T  use 5V BEC）

Size:   Controller：31.4 x 48.5 x 18.5mm                GPS：  39 x 46 x 15mm

Working environment： -10-55℃

Weight: Controller (38.7g)      GPS(28.1g)

Gps Accuracy:  Vertical direction ±0.5m             horizontal direction  ±1.5m

Maximum wind resistance  10m/s

The max Yaw rate： Stunt mode 300°/s

The max Tilt angle ：45° （default 35°）

Maximum Ascent / Descent Speed  4m/s

Includes:

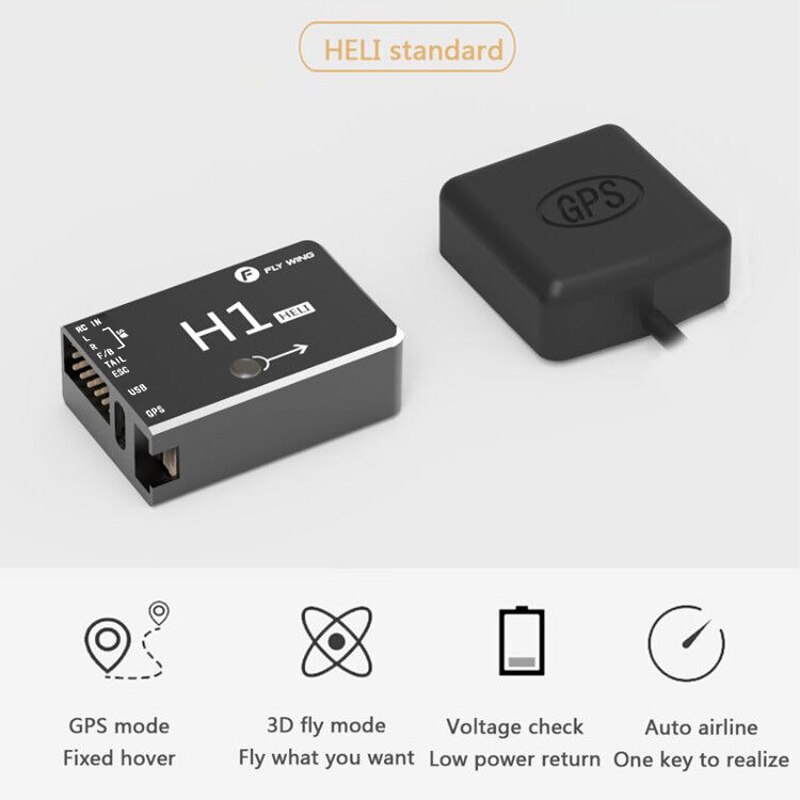

1 X Fly Wing H1 Helicopter Flight Controller 3D Flybarless Gyro System
